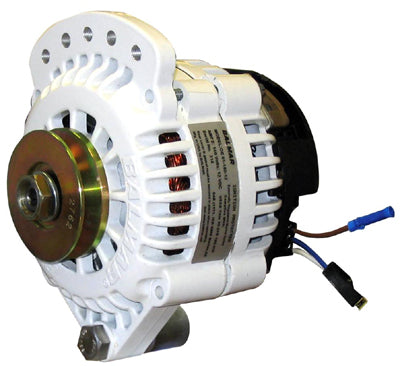

Balmar Alternator 60-100-SV Dual Foot 100 Amp 12 Volt

Balmar 60-100-SV 100 Amp 12V 6-Series Alternator.

Designed to support the widest range of marine gasoline and diesel engines possible, Balmar 6-Series alternators deliver high-output performance in a package that's super compact and available in a wide range of popular mounting configurations.

Cooled by dual internal fans and an open, self-ventilating frame, 6-Series alternators offer an impressive output from idle to full cruising rpm.

Balmar 6-Series alternators are available in three mounting configurations, which support four mounting styles: 3.15” saddle, typical of Yanmar engines, 4” J-180mount, and a single foot mount that’s convertible to support 1” Motorola and 2” Delcostyle mounting configurations.

Balmar 60-100-SR-IG 6-Series Alternators are 3.15” I.D. Saddle (Hitachi Style) and features a SmartReady internal regulation that enables the alternator to be used with smart Balmar external regulation or as a stand-alone, internally regulated alternator system.

Typical Mounting Applications of Balmar 60-Series Alternators are Yanmar, Westerbeke, Lehman, and Perkins-Sabre
