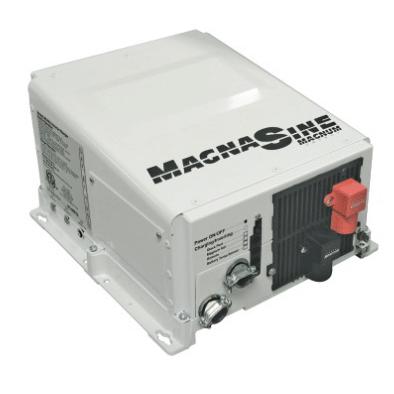

Magnum MS2812 2800W 12V Pure Sine Wave Inverter Charger 125A is designed specifically for the most demanding mobile, back-up, and off-grid applications. The MS2812 is powerful, easy-to-use, and best of all, cost effective.
A Power Factor Corrected (PFC) Charger is built into the inverter/chargers. It uses less energy (25-30% less AC current) from a generator than a standard chargers.
Magnum Inverter Charger MS2812 Installation is easy:
1. Simply connect the inverter’s output to your distribution circuits or electrical panel
2. Connect your utility power cable to the inverter’s easy-to-reach terminal block
3. Connect the batteries
4. Switch on the power
MS2812 Inverter Features and Capabilities
| Five Stage Charging Capability | Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver™ | |
|
Battery Temperature Compensation
|
Yes, 15 ft Battery Temp Sensor standard
|
|
|
Overcurrent Protection
|
Yes, with two overlapping circuits |
MS2812 Inverter Specifications:
|
Input Battery Voltage Range
|
9 - 17 VDC
|
|
|
Nominal AC Output Voltage
|
120 VAC ± 5%
|
|
|
Output Frequency and Accuracy
|
60 Hz ± 0.1 Hz
|
|
|
Continuous Power Output at 25°C
|
2800 VA
|
|
| Waveform | Pure Sine Wave | |
|
Continuous Output at 25°C |
125 ADC | |
| Warranty |
3 Years
(5 Years when installed on MMP or MP system) |
|
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) | |
| Operating Humidity | 0 to 95% RH non condensing | |
| Dimensions |
13.75" x 12.65" x 8.0"
(34.9 cm x 32.1 cm x 20.3 cm) |
|
| Weight |
55 lbs (24.9 kg)
|
|
|
|
|
Manufacturer part # MS2812
| Magnum MS2812 Inverter Details: | |
|
Magnum MS2812 Manual |
|
|
Magnum MS2812 Data Sheet |
