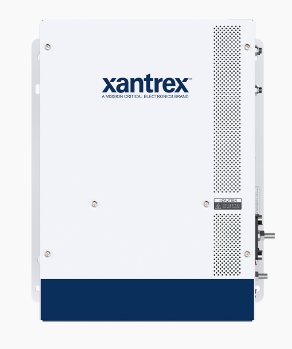

FREEDOM SW-RVC 3000W/150A, 12V

True sine wave Inverter. 200% power surge for 5s to support motor loads. Generator support mode to supplement generator when AC loads exceed generator’s capacity. Stackable in parallel and series. Built-in CAN/RV-C to interface directly with other RV-C enabled devices.

The Heart of Your Power System

FREEDOM SW series from Xantrex are the most advanced and capable inverter chargers in the mobile market. These units are packed with features like “Generator Support Mode” which enables the Freedom SW to assist a generator when AC loads exceed the generator’s capacity. They are also stackable for extra power. If you are looking for a unit for your air conditioning, this is the one! With a powerful long duration 2x surge and other industry leading features, the Freedom SW series will handle demanding power requirements.

Stackable in parallel or series

Parallel units to double inverter power or connect them in series to get split-phase 120VAC/240VAC.

200% surge for 5s for motor loads

Up to 200% power for 5s to support motor loads such as drills and circular saws which require large power to start up.

Features

• True sine wave to support sensitive electronics
• 200% for 5s surge for motor loads
• Generator support mode
• RV-C Enabled

What Can Be Powered

• Laptop
• Smartphone
• Laptop
• TV
• DVD Player
• Fridge

Dimensions

FREEDOM SW-RVC

Electrical Specifications – Inverter

FREEDOM SW-RVC

Output power (continuous at 40°C)      3000W

Surge rating (5 seconds)                           6000W

Peak output current                                   80A

Output frequency                                       60Hz ± 0.2Hz

Output voltage                                            120Vac

Output wave form                                       True sine wave

Optimal efficiency                                       90%

No-load power draw (inverting)             3Adc

Input DC voltage range                             10–16Vdc

AC connections                                             Split phase in / dual out, dual in / dual out

Electrical Specifications – Battery Charger

FREEDOM SW-RVC

Output current (continuous at 25°C)                      150A

Output voltage                                                               12Vdc

Output voltage range                                                   5–16Vdc

Charge control                                                                3 stage with manual equalize

Charge temperature compensation                       Remote battery sensor (included)

Optimal efficiency                                                          >85%

AC input power factor (maximum charge)             0.98 typical

Input current (for maximum charging)                      24A rms nominal

Input AC voltage                                                               120Vac

Input AC voltage range                                                   85–140Vac
Dead battery charge                                                       >5Vdc

General Specifications

FREEDOM SW-RVC

Compatible battery types                               Custom / Flooded / Gel / AGM*

Transfer relay rating                                       2 legs at 30 A each

Transfer time (AC to inverter and inverter to AC)         <20ms

Optimal operating temperature range              -4°F–140°F (-20°C–60°C)

Storage ambient temperature range                -40°F–185°F (-40°C–85°C)

Part number                                                     815-3012-02

Dimensions (L x W x H)                                     7.75 x 13.5 x 15.25” (197 x 343 x 387 mm)

Net Weight                                                       60.5 lbs (27.5 kg)
