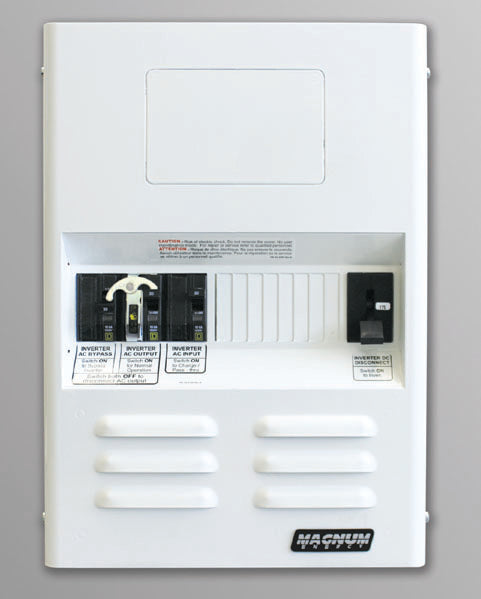

Magnum Panel Single Enclosure Low Power MPSL Series

The MP (Magnum Panel) enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system — inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance — into easy-to-install pre-wired enclosures. Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and used with the optional Router (ME-RTR), the MP will allow you to easily set up, monitor, and operate up to four MS-PAE inverter/chargers together (must be identical models to parallel stack).

In addition to saving time and money by providing a simple and convenient inverter installation, the MP enclosures ensure safety and reliability by providing a UL and CSA certified and code compliant system.

Features:

Expandable: Start with the enclosure and just one inverter and in the future expand to multiple inverters, depending on MP model, with ease, using the MPX.

Easy installation: All connections are front-mounted, including AC and DC breakers and the MPX.

Labor saving: Panel is pre-wired for fast installation, saving labor costs.

DC load breakers: Fits either din rail or back-mount DC load breakers.

Convenient knockouts: Knockouts on the side of the enclosure are compatible with most charge controllers.

Includes:

• MPSL-30D
  • One 250 ADC breaker
  • Dual 30 AAC input breaker
  • Dual 30 AAC output breaker
  • Dual 30 AAC bypass breaker
  • 500A/50mv DC shunt
• MPSL-60S
  • One 250 ADC breaker
  • Single 60 AAC input breaker
  • Single 60 AAC output breaker
  • Single 60 AAC bypass breaker
  • 500A/50mv DC shunt
• MPSH-30D
  • One 250 ADC breaker
  • Dual 30 AAC input breaker
  • Dual 30 AAC output breaker
  • Dual 125 AAC bypass breaker
  • 1000A/100mv DC shunt
• MPDH-30D
  • Two 250 ADC breakers
  • Two dual 30 AAC input breakers
  • Two dual 30 AAC output breakers
  • Dual 125 AAC bypass breaker
  • 1000A/100mv DC shunt

More detailed information:
	Magnum Panel Owner's Manual
	Magnum Panel Brochure
